三星USB硬盘修改串口方法

我们经常遇到很多客户是一体的USB硬盘,但PC3000中不支持USB固件读写.所以我们经常要修改成串口来处理.
具体修改方法如下:

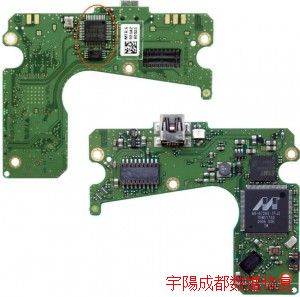

There are two types of USB PCBs:
1. With separate SATA-USB bridge;

三星USB硬盘修改串口方法

我们经常遇到很多客户是一体的USB硬盘,但PC3000中不支持USB固件读写.所以我们经常要修改成串口来处理.
具体修改方法如下:
There are two types of USB PCBs:
1. With separate SATA-USB bridge;
三星USB硬盘修改串口方法

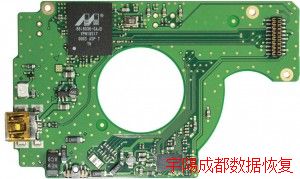

2. With SATA-USB bridge integrated into the MCP.
三星USB硬盘修改串口方法
For the second type it is impossible to solder SATA connector.
So in this article we will speak about the first type PCBs only.

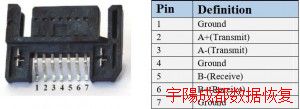

At first we should understand the pinout of SATA connector.
三星USB硬盘修改串口方法

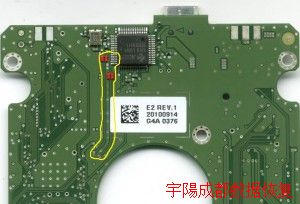

Then we look at the MCP on the PCB and determine where the SATA differential pairs are.
In most cases it’s easy to find them. They look like 4 parallel lines going towards the USB bridge.
三星USB硬盘修改串口方法

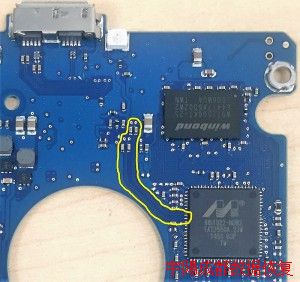

If we can’t find them on the MCP side then we should try to trace them from the USB bridge side.
三星USB硬盘修改串口方法

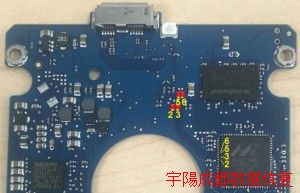

They always go through capacitors.
We need to remove (desolder) these capacitors to cut the USB bridge from the circuit.
三星USB硬盘修改串口方法
The next step is how to determine the arrangement of the wires.

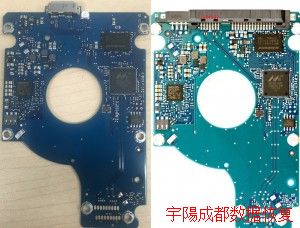

The easiest way to determine that is to look at the picture of a compatible PCB.
三星USB硬盘修改串口方法
That’s how we can understand which SATA connector pin goes to which MCP pin.
三星USB硬盘修改串口方法
The ground pins (1,4,7) must be connected to the ground of the PCB
(to any screw hole or to the USB connector body for example).

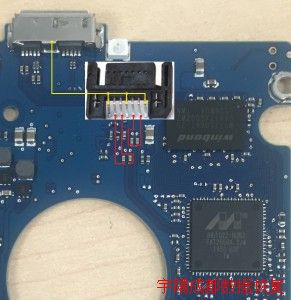

So here is the result.
三星USB硬盘修改串口方法
It is recommended to make wires as short as possible.
If you have difficulties with the pinouts of the new PCB please feel free to contact our technical support team.

三星USB硬盘修改串口方法
